Mini Substation Transformer
ANSI/IEEE/CSA/IEC/AS standard
- H.V.: 30kv, 33kv or 44kv...
- L.V.: 6kv, 6.6kv or 10kv...
- CAPACITY: 3MVA, 5MVA, 10MVA...
- H.V. TAP RANGE: ±2×2.5%
- CONNECTION TYPE: Dyn11, YNyn0...
- COOLING: ONAN, ONAF/KNAN, KNAF
Inquiry Now
Specification
| Rated Primary Voltage | 30KV/33KV/35KV/44KV |
| Rated Secondary Voltage | 6KV/6.6KV/10KV |
| Rated Capacity | 2500kva/3000kva/5000kva |
| Frequency | 50/60HZ |
Related Products
220/33KV 130MVA Power Transformer IEC Standard
View DetailDescriptions

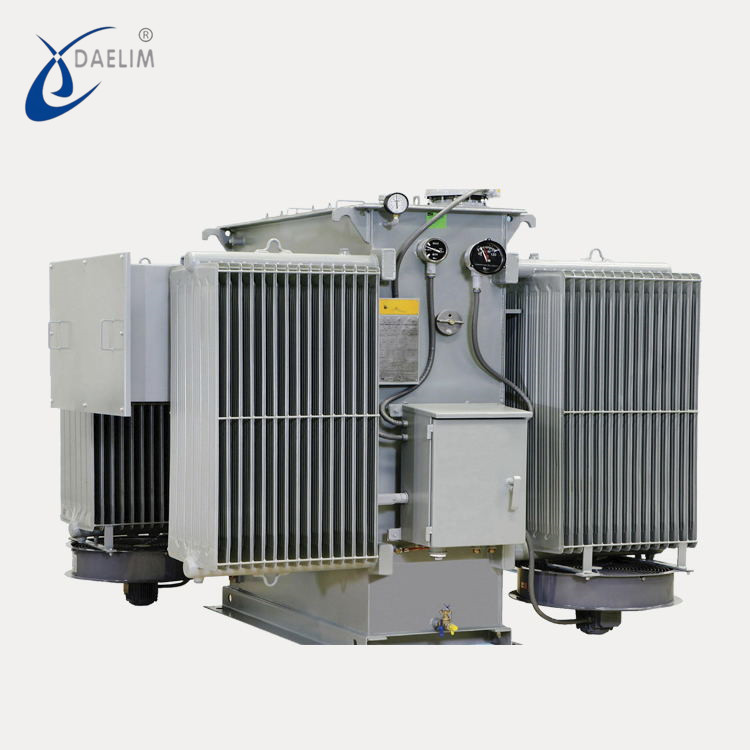

Mini Substation Transformer
Mini Substation transformer consists of body (core, winding), transformer oil, oil tank and cooling device, tap changer device, protection device and HV and LV bushings.
Mini Substation transformer is belongs to power transformer, the difference from the power transformer is that the high voltage substation transformer is below 110kv above 30kv, the capacity is around 2mva, 3mva, 5mva....
This is one of the substation transformer we produced for Canadian clients, We have applied the CSA certification through this chance. We spent about two - three weeks to get it. After the tests from CSA standard, we can provide you the safe and reliable electrical product. This Mini Substation transformer's basic tech specification is 44kv 5mva.
Product Description
| Production name | Mini Substation transformer |
| High voltage | 30kv, 33kv, 44kv or others |
| Low voltage | 6.3kv, 6.6kv, 4.16kv or others |
| Rated capacity | 2MVA, 5MVA, 7MVA OR OTHERS |
| Standard | IEC, ANSI, CSA... |
| Core and winding material | Crgo slicon steel Metal Core, AL or CU Winding |
| On-load tap changer | Germany MR, ABB, Huaming China... |
| Warranty | Provide 24 months guarantee period normally |
Reference Photos
Liquid level gauge Pressure relief device Thermometer
(the oil level at 20°C)
Fan Bushings Outlook
The reference drawing:
The Accessories:
| HV BUSHING | Partial height, bottom entry air terminal chamber |
| Welded cover with bolted manhole | RADIATORS |
| SS ground pads | Control Box |
| NAME PLATE | TAP CHANGER |
| lightning arrester | Winding temperature indicator |
| Core Ground Bushing Assembly | Pressure relief device |
| Pressure/vacuum gauge | Liquid level gauge |
| Lifting lugs | LV BUSHING |
| Drain valve | FAN |
Technical Specification
| Technical Data for 35KV Class Three Phase Oil-immersed Substation Transformer | |||||
| Rated Power (KVA) | High Voltage | Low Voltage | Connection Symbol | No-Load Loss | On-Load Loss |
| 3150KVA |
35KV 38.5KV 44KV 46KV or others |
6.3KV 6.6KV 10KV 10.5KV 12.47KV 13.8KV |
Yd11 Ynd11 |
3010W | 23000W |
| 4000KVA | 3610W | 27200W | |||
| 4500KVA | 3920W | 27440W | |||
| 5000KVA | 4270W | 31200W | |||
| 6300KVA | 5110W | 34900W | |||
| 8000KVA | 7000W | 38300W | |||
| 10000KVA | 8260W | 45100W | |||
Photos of the delivery
Certifications
CESI Certification CSA certification ISO9001-2015 ISO14001-2015 ISO45001-2018
Application&Project Cases
Our factory
DAELIM uses the highest quality materials and engineering expertise to provide the right unit for your energy needs. If you need a transformer with unique specifications or features, we can work with you to modify a stock unit or fabricate a new system to order.
DAELIM can provide : Substation transformer, Power transformer, Pad Mounted transformer, Dry Type Transformer, Distribution Transformer.
Customer Photos
What is a Mini Substation Transformer?
Substation is the place where the voltage is changed is a power facility in the power system that transforms the voltage, receives and distributes electrical energy, controls the flow of power and adjusts the voltage. It connects the power grids at all levels of voltage through its transformers.
Substation is the assembly of some equipment to cut or connect, change or adjust voltage. In the power system, the substation is the gathering point of power transmission and distribution.
Classification of substation：Hub substation, terminal substation; step-up substation, step-down substation; power system substation, industrial and mining substation, railway substation.
The role of the substation: the substation is to assemble some equipment to cut or connect, change or adjust the voltage. In the power system, the substation is the gathering point of power transmission and distribution
What are the ratings tech data of a mini substation transformer?
The typical rating tech data: Primary voltage: 30kv to 69kV
Secondary voltage: 6kv to 10 kV
Capacity: 2000kva to 10mva
Transformer composition:
1. oil tank: Install winding, iron core insulating oil
2. Core: is the main body of the transformer
3. Winding: Magnetic flux is generated, and magnetic flux is induced to generate current
4. Radiator: Speed up the dissipation of heat generated
5. Conservator（some have）: Oil storage, communicate with the oil tank to ensure sufficient insulating oil in the oil tank
6. Insulation Bushing: Take the coil lead end out of the fuel tank and insulate the lead from the fuel tank
7. Tap changer: The number of turns of the primary winding can be changed to adjust the voltage
8. Gas Relay: protective device
9. Insulating oil: insulation, heat dissipation
Which transformer is used in substation?
Primary voltages of a substation transformer usually ranges from 30kV to 69 kV, capacity from 2000kva to 10 mVA, 600 volt to 35 kV for secondary voltage ratings.
The most widely used for substation are mini substation transformer and power transformer.
What is the difference between a substation and a mini substation?
In fact, small substations are like normal substations, except that the transformers are usually smaller (lower kVA rated), there are fewer means of secondary distribution equipment (circuit breakers, switchgear, etc.), and the complexity of protecting transformers and feeders may also be Lower and metering control systems. Small submarines usually only include a power transformer, a set of primary fuses and some kind of overcurrent protection on the transformer secondary (breaker or fuse), possibly a load tap changer, and some fairly basic secondary metering , depending on which load service is required.
What is the FAT test for Mini Substation Transformer?
1.Ratio, Polarity, and Phase Relation: Assures correct winding ratios and tap voltages; checks insulation of HV and LV circuits.Checks entire insulation system to verify all live-to-ground clearances.
2.Resistance: This test verifies the integrity of internal high-voltage and low-voltage connections; provides data for loss upgrade calculations.
3.Applied Potential: Applied to both high-voltage and low-voltage windings, this test stresses the entire insulation system to verify all live-to-ground clearances.
4.Induced Potential: 3. 46 times normal plus 1000 volts for reduced neutral designs.
5.Loss Test: These design verification tests are conducted to assure that guaranteed loss values are met and that test values are within design tolerances. Tests include no-load loss and excitation current along with impedance voltage and load loss.
6.Leak Test: Pressurizing the tank to 7 psig assures a complete seal, with no weld or gasket leaks, to eliminate the possibility of moisture infiltration or fluid oxidation.
7.Operation tests of all devices: All electrical and electro-mechanical devices shall be operated both in auto and manual mode for proper sequencing/staging and function.
